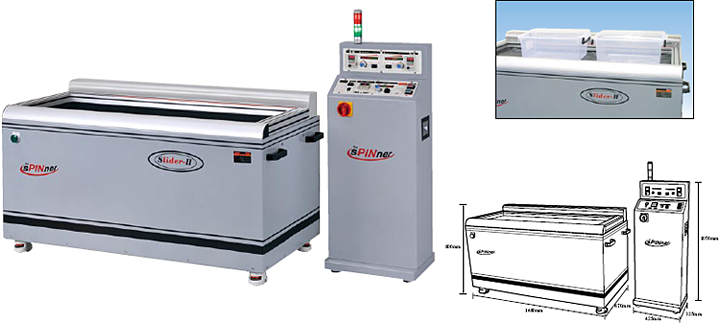

Magnetic De-Burring > HD-7100Ⅱ |
|
| |
| Parallel mobile-type |
| |
 |
 |
- Abrasive grinding magnetic power keeps
movement in parallel without dead corner.
- Suitable for a long workpiece and magnetic
materials and parts, after moving in parallel to
grind the workpiece for the best grinding effect.
- Suitable for the larger workpiece grinding, so
that each part is able to be ground completely.
|
 |
|
| MODEL |
DIMENSION
(L×W×H) |
TANK SIZE
(L×W×H) |
CONTAINER SIZE
(L×W) |
POWER |
WEIGHT |
| HD-7100Ⅱ |
1480×670×800mm |
425×325×1050mm |
1000×430mm |
220VAC(50/60HZ) |
500KG |
|
| MODEL |
Max. processing capacity
(Reference Value) |
|
WEIGHT |
| HD-7100Ⅱ |
copper、stainless steel、aluminum、
zinc(non-magnetic material) |

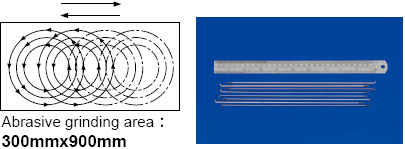

300×900mm |
1.Stainless pins/12KG(Standard Dimension)
2.Plastic container/2 set
3.Separating container/1set
4.Magnetic sleeve/1set
5.Grinding liquid/233A(12,000c.c)
6.Operation manual/1set |
| iron、steel、stainless steel
( magnetic material) |
|
|
| |
 |
| |
