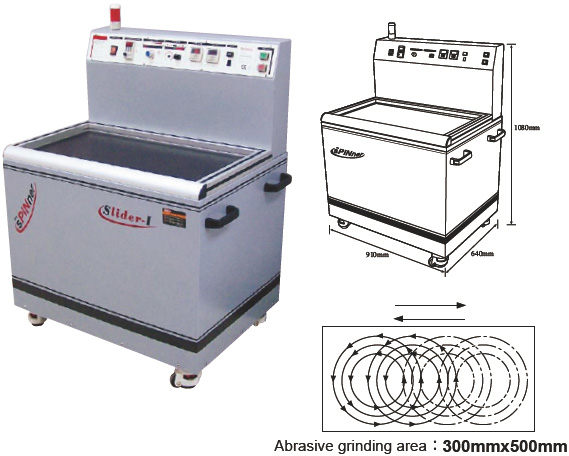

Magnetic De-Burring > HD-760Ⅰ |
|
| |
| Parallel mobile-type |
| |
 |
| |
- Abrasive grinding magnetic power keeps movement in parallel
without dead corner.
- Suitable for a long workpiece and magnetic materials and parts, after
moving in parallel to grind the workpiece for the best grinding effect.
- Suitable for the larger workpiece grinding, so that each part is able to
be ground completely.
|
 |
|
| |
| MODEL |
DIMENSION
(L×W×H) |
TANK SIZE
(L×W) |
POWER |
WEIGHT |
| HD-760Ⅰ |
910×640×1080mm |
500×400mm |
220VAC(50/60HZ) |
200KG |
|
| MODEL |
Max. processing capacity
(Reference Value) |
|
WEIGHT |
| HD-760Ⅰ |
copper、stainless steel、aluminum、
zinc(non-magnetic material) |
300×500mm |
1.Stainless pins/6KG(Standard Dimension)
2.Plastic container/2 set
3.Separating container/1set
4.Magnetic sleeve/1set
5.Grinding liquid/233A(6,000c.c)
6.Operation manual |
| iron、steel、stainless steel
( magnetic material) |
|
|
| |
 |
| |
